Sustainable Restroom Design: Saving the planet one fixture at a time

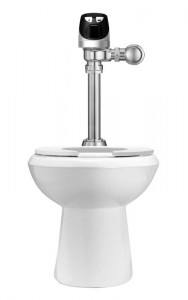

Dual-Flush
Electronic, hands-free dual-flush valves detect the amount of time the user has made contact and automatically adjusts for low-volume or full-volume flushes.

High-efficiency toilets
In the restroom, the fixture using the most water by far is the toilet. Generally, older units—those manufactured before 1992—use the most water, often between 13 and 26.5 L (3.4 and 7 gal) per flush, depending on their age. New high-efficiency toilets (HETs) employ about 4.8 L (1.2 gal) per flush. Switching from an older toilet to a HET can save more than 22,000 L (5811 gal) per year per toilet. Clearly, making buildings greener can have a significant impact on larger environmental goals.

Dual-flush toilets are also considered HETs. When the handle is tilted down, it uses a full-volume 6 L (1.5 gal) per flush for solid waste. When the handle is tilted up, the toilet uses 4.2 L (1.1 gal) per flush or 30 per cent less water for light waste. Dual-flush toilets, popular in Australia, have been around since the early 1980s and recently have caught on in North America. The dual-flush retrofit handles are easy to install on existing fixtures and give a building owner or manager an inexpensive way to start saving water immediately.

The next generation of dual-flush HETs is electronic and hands-free. If a user is detected for less than 60 seconds, the device will assume light waste and automatically use the lower volume of water. If a user is detected for more than 60 seconds, it will assume heavy waste and give the full flush volume.

Power-harvesting fixtures can be used as another way to save on maintenance and resources. These hands-free, solar-powered flushometers are available in single-flush or automatic dual-flush electronic versions and have a much longer battery life than regular battery-powered products.

HETs have created successful savings at Target Field in Minneapolis, Minnesota, and at the Portland Airport in Maine. At Target Field, the installation of more than 600 manual dual-flush flushometers is expected to save $133,600 annually, compared to the standard 6.4 L per flush toilets. Additionally, Portland Airport is reporting the installation of 330 manual dual-flush and electronic dual-flush flushometers helped realize a savings of more than 113,000 L (29,851 gal) of potable water a day.

Another type of HET uses reclaimed water—which is mandatory in some countries and is an idea gaining traction in North America. Due to the chemical content in this reclaimed water, this flushometer has been specifically engineered with high-copper, semi-red brass, and synthetic rubber components enabling it to withstand the harsh chemical conditions of the water. This product has an optional industry-standard purple handle, which is used to identify district/municipal water lines and other systems using reclaimed water.

A pressure-assist device is another method of achieving a high-efficiency toilet. These products use compressed air to increase the flush velocity with lower amounts of water.

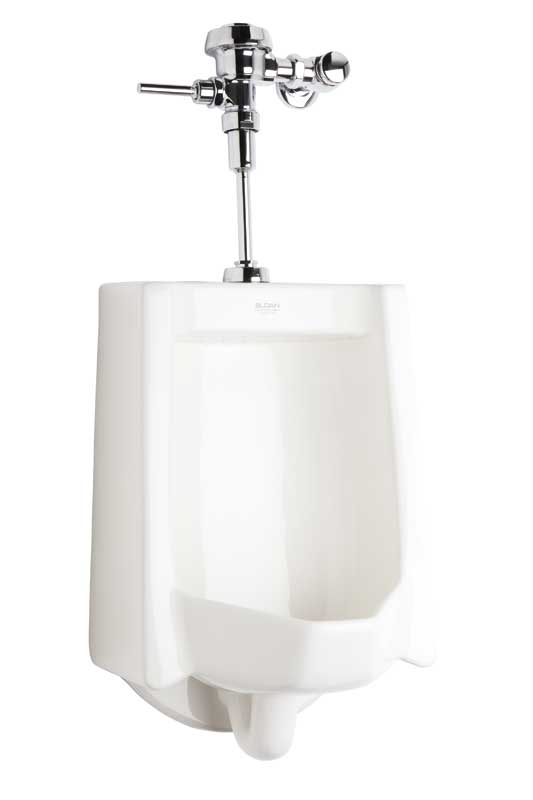

High-efficiency-Urinal
High-efficiency urinals (HEUs) include those using less than 3.9 L (1 gal) per flush. Some models use even less, including 1.9, 1, and 0.5 L (0.2, 0.5, and 0.1 gal) per flush models and waterfree HEUs.

High-efficiency urinals
Billions of litres (260 million gal) of potable water are used every year to flush urinals. High-efficiency urinals (HEUs) use 50 per cent or less than today’s 3.9 L (1 gal) per flush models, and there are many options available, including 0.5, 1, and 1.9 L (0.1, 0.2, and 0.5 gal) per flush and waterfree HEUs.

Waterfree urinals consist of a vitreous china fixture and a cartridge providing an airtight seal from the drain to prevent odours from escaping. The cartridge also acts as a trap to collect sediment, allowing waste to pass easily down the drain. Waterfree urinals save 100 per cent of water as compared with a traditional urinal, but proper installation and routine maintenance are key to keeping them working optimally.

Waterfree urinals can also save a great deal of money. Merritt 7 Corporate Park in Norwalk, Connecticut, was retrofitted with 23 waterfree urinals. After retrofit, the parks water bills reflected a reduction in water use of 3.2 million L (845,350 gal), equating to an annual savings of $10,420, with a 2.5-year return on investment (ROI). The corporate park anticipates saving as much as 7.6 million L (2 million gal) per year from the water-efficient plumbing system upgrades, which also enabled them to receive an additional LEED credit for water-efficiency on top of the credit for installing low-consumption toilets.

Recently introduced ‘hybrid’ urinals are another high-efficiency option. These units use carefully directed water ‘purges’ to rinse the drain line periodically, preventing buildup that can cause odour and boosting plumbing system performance.

High-efficiency faucets
Faucets account for trillions of litres (260 billion gallons) of water use per year across Canada. Electronic faucets are a viable option to help reduce water usage. The average time an electronic faucet is ‘on’ per user is only about 10 seconds, including the two to three seconds when the user wets their hands and the six to seven seconds when they rinse. In addition to saving water, electronic faucets are easy to use, efficient, vandal-resistant, more hygienic (as they are touch free), and accommodate persons with disabilities.

Hybrid-Urinal
Hybrid urinals use a carefully directed water ‘purge’ to rinse the drain line periodically, preventing buildup that can cause odour or plumbing problems.

Design, hygiene and convenience
Not only are today’s newer fixtures more water-efficient, but commercial manufacturers are also paying more attention to the smart design and esthetics of the commercial restroom. Modern, attractive restroom fixtures now deliver a highly functional, hygienic, and convenient restroom user experience.

For example, there is a new trend toward integrated sink, faucet, soap dispenser, and hand-dryer systems. This no-touch sink system—enables the user to activate the faucet, soap-dispenser, and hand-dryer using infrared technology.

Historically, hand-dryers have not been popular because they take too long to dry hands completely, which is why they are only installed in about 10 per cent of restrooms. It takes about 10 seconds to dry hands with paper towels and 35 to 45 seconds with traditional hand dryers. Newer high-speed, energy-efficient hand dryers are changing people’s perceptions. These hand dryers can dry in 10 to 15 seconds—three times faster than conventional hand dryers. They are also 50 per cent quieter and save 80 per cent of the energy of traditional hand dryers. Additionally, they are easy to install and virtually service-free.

The savings in water, electricity, paper towels, maintenance, and waste removal adds up quickly, positively affecting a facility manager’s bottom line. Upgrading restrooms with high-efficiency products immediately saves time, money, and the environment.

Water-saving and eye-catching
As Canada begins to address the pending global water shortage, design construction professionals eventually may be mandated to use more water-efficient commercial restroom fixtures. Luckily, there are highly efficient products currently available to address these issues, with limitless options for esthetics, performance, function, and hygiene. By specifying high-efficiency plumbing products in new construction and retrofitting existing buildings with them now, building teams will be well-positioned to comply with new water-efficiency standards while still offering attractive, functional restrooms.

Patrick-Boyle_SloanPatrick Boyle, CSP, LEED GA, is director of corporate sustainability at Sloan. He holds a master’s degree in environmental management and sustainability and is on the board of directors of the U.S. Green Building Council (USGBC) Illinois Chapter. He can be reached at patrick.boyle@sloan.com.
