Colour sound mapping
STC, like other acoustic metrics, measures performance of a multi-component, architectural system at different frequencies and then uses a procedure per ASTM E90 to represent the ‘average’ performance with a single number. While the single number metrics are useful for quick comparisons and some decision-making, a lot of beneficial detail is lost. Two assemblies can have the same STC rating, and their performance can be perceived quite differently. Therefore, it is wise to also review the transmission loss (TL) performance at third octave band resolution, but even TL is an ‘average’ of how the whole system or assembly is performing.
Neither STC nor TL can show how specific, individual components are performing relative to the others in the system or assembly. A ‘weak link,’ if present, cannot be identified. For that reason, a commercially available, sound, colour-mapping system was used to create maps superimposed over pictures of each architectural test specimen. The colour sound maps were created by using specialty software to combine in real-time the acoustic data from a sound intensity probe with its position data from a position tracking device.
Two different types of colour sound maps were created. The first type shows sound transmission through the test specimen from a sound source located in the chamber above the floor-ceiling assemblies. The second type of sound map shows sound absorption and reflection off the ceiling systems when the sound source is in the same room below the ceiling systems.
Ceiling sound isolation performance

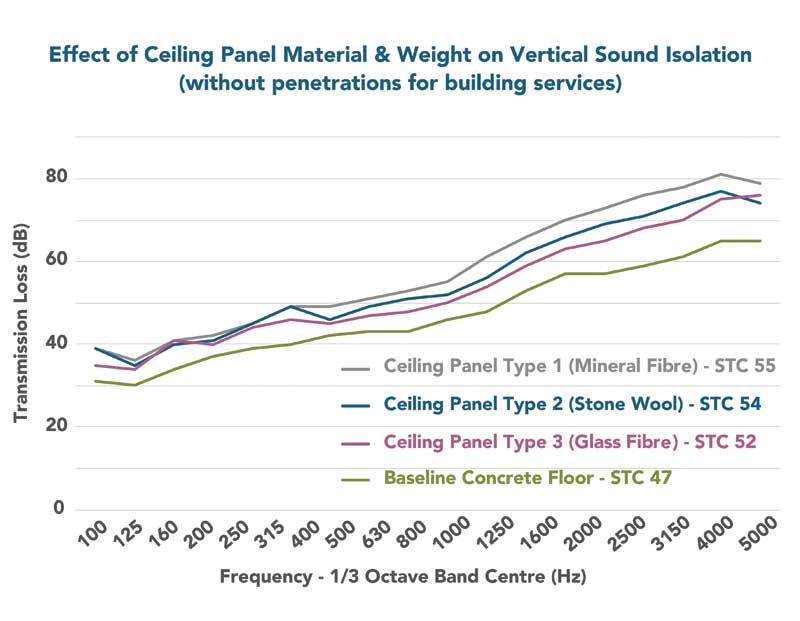

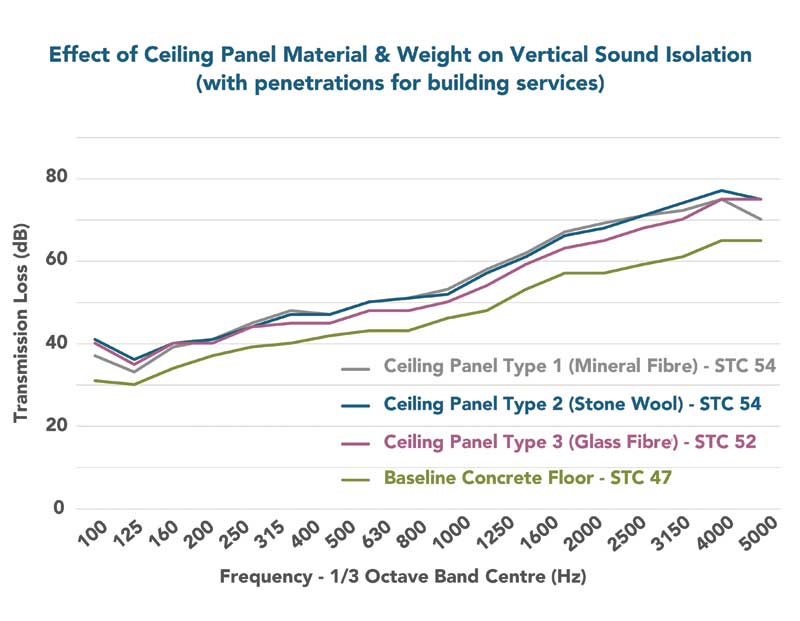

TL and STC results are provided in Figure 3 (no penetrations in the ceilings for building systems devices) and Figure 4 (page 18) (penetrations in the ceilings for building systems devices). The baseline concrete on steel deck with VCT flooring on top rated STC 47, which is three points below our minimum reference goal of STC 50 based on acoustic standards, guidelines, and rating systems.
Adding an acoustic ceiling to the baseline floor increased the STC rating of the assembly, on average, six-and-a-half STC points. Adding any of the three acoustic ceiling panel types resulted in assembly ratings that were two to five STC points higher than the reference goal of STC 50. The three ceiling panel types varied by only three STC points when there were no penetrations for building systems and differed by only two STC points when the penetrations for lights, supply air, and return air were present.
The STC ratings for each ceiling panel type without any penetrations for building services were essentially the same as those with ceiling penetrations. Ceiling panels types 2 and 3 resulted in STC 54 and STC 52, respectively, regardless of whether the penetrations for building services were present or not. For panel type 1, the STC rating only decreased one point when the ceiling penetrations were included.
Figure 5 (page 20) shows a summary of both types of colour sound maps for the three types of ceiling panels. The absorption (NRC) images show top row shows noise reflecting off the ceiling (red and yellow) or being absorbed by the ceiling (blue). The consistent red areas for all three ceiling types are loud noise reflecting off the painted, metal light fixtures, and supply air diffuser. It is important to note the return air grill in all three images is blue because sound is passing through the open return grille, representing perfect absorption, and not reflecting off that part of the ceiling back into the room.
Ceiling panel type 1 (mineral fibre, NRC 0.75) is mostly yellow and red because it is reflecting noise more than absorbing it. Ceiling panel types 2 (stone wool, NRC 0.90) and 3 (glass fibre, NRC 0.95) are mostly blue, like the return air grille, because they are efficiently absorbing and not reflecting the noise. Slightly better absorption can be seen for panel type 3; there is less yellow and more blue.
The isolation (STC) images in Figure 5 show noise leaking through the floor-ceiling assembly. The colour maps for the three ceiling panel types are very similar, which is expected since the STC ratings and TL are also alike. The interesting anomaly is the amount of sound leaking thought the return air grille.
The ceiling panels have, essentially, the same absorption characteristics on their topsides (facing up into the plenum above) as they do on their bottom sides (facing down into the room). Since ceiling panel type 1 has a lower absorption rating, noise reflects around inside the plenum more readily, leaking down through the opening at higher levels (red). This is also true, but to a lesser extent for panel type 2 (green/yellow).
The return air grille is only similar to the rest of the ceiling for panel type 3, indicating the noise is being absorbed in the plenum. This difference in noise leaking through the return air grille may produce a localized audible difference for someone directly under the return air grille, but would probably not be audible elsewhere in the room.
